QOOTEC QM2SSP1X40XXXI M.2 SATA 2242 SSD | 512GB SATA III 6Gb/s, Wide-Temp Drive for Rugged PCs, Automation & Harsh Environments

Overview

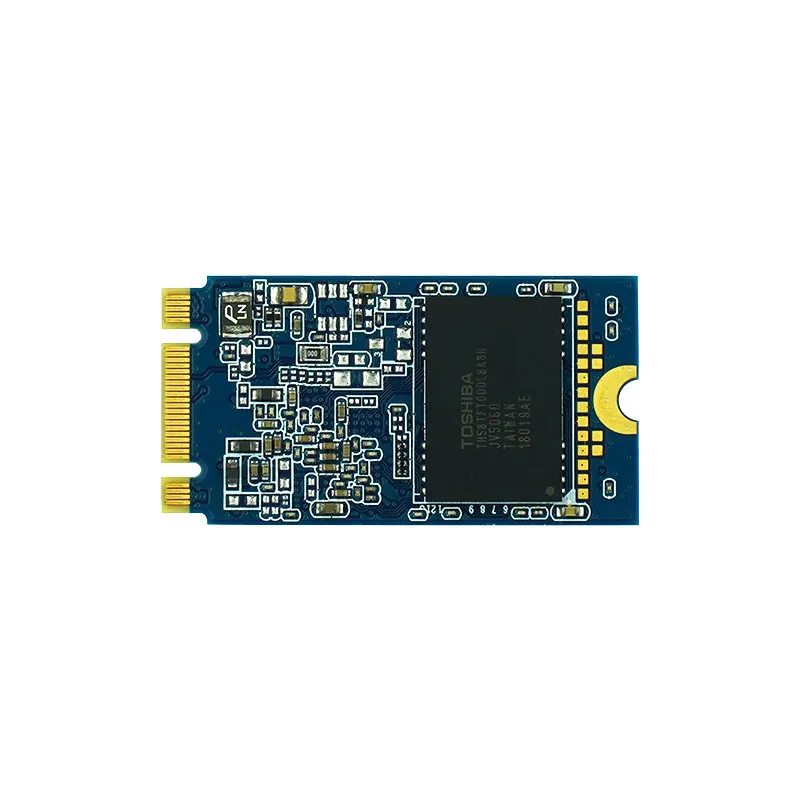

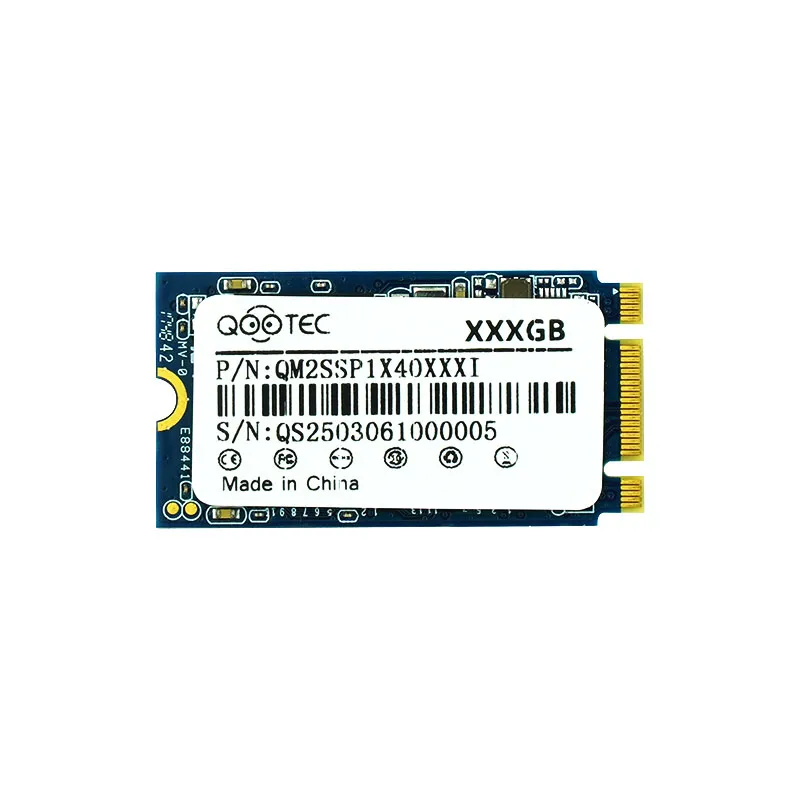

The QOOTEC QM2SSP1X40XXXI M.2 SATA 2242 SSD offers 512GB of storage with SATA III 6Gb/s speeds. This M.2 (NGFF) drive uses TLC and pSLC 3D NAND technology. Its compact size (22mm x 42mm) and wide operating temperature range (-40°C to 85°C) make it ideal for rugged PCs and industrial devices. With read speeds up to 530MB/s and write speeds up to 500MB/s, it ensures reliable performance even in harsh environments.

Manufacturing Process

Each QOOTEC QM2SSP1X40XXXI M.2 SATA SSD follows a precise production process:

SMT Placement: We mount components onto the PCB accurately.
Card Initialization: The SSD controller is set up and ready for use.
Speed Testing: We test read/write speeds to ensure the SSD performs as expected.
OS Cloning: We copy the OS and software to the SSD for immediate use.
Power Cycling: The SSD undergoes simulations to test power-off stability.
Aging Test: We stress-test the SSD under high load for long-term reliability.
Full Disk Test: A complete disk write ensures stable operation.
Temperature Testing: The SSD is tested in extreme temperatures from -40°C to 85°C.
Bad Block Checking: We scan the drive to eliminate bad blocks.
Vibration Testing: The SSD is tested for durability under vibration conditions.
Re-initialization: The SSD may be reformatted to ensure full readiness.
Final Disk Test: A last check confirms the SSD is error-free.

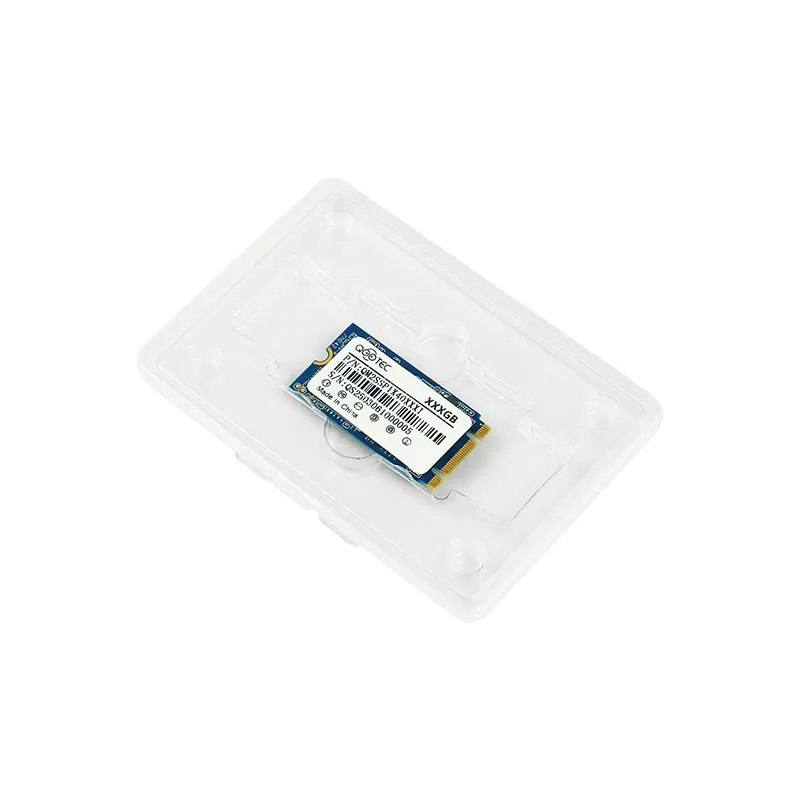

Packaging: After passing all tests, we carefully package the SSD for shipment.

Applications

The QM2SSP1X40XXXI M.2 SATA 2242 SSD is versatile and suits various industries:

POS Systems
Digital Signage
Vending Machines
KIOSK Systems
ATMs
Thin Clients & Mini Boxes
Industrial PCs & Panel PCs
OPS Devices
Testing Machines
Rugged Computers
Railway Automation
Medical Equipment

Whether used in industrial automation, POS systems, or rugged computing, this M.2 SSD ensures consistent performance in demanding conditions.

Why Choose QOOTEC QM2SSP1X40XXXI M.2 SATA 2242 SSD?

Here’s why Qootec is your best choice:

High Product Quality
Our consumer SSD failure rate is below 0.5%. For industrial SSD, it’s below 0.1%. We also offer a 3-year warranty on all products.
Control Over Production
We manage every step of production to guarantee both quality and timely delivery.
- Small orders (less than 500 units) ship in 3 days.
- Large orders (10k-20k units) ship in 10 working days.
Reliable Supply Chain
With 10+ years of experience, we have strong partnerships with NAND flash and controller suppliers. This ensures timely deliveries at competitive prices.
Excellent Customer Service
We provide 7-day support with fast responses. Our team is always ready to assist before, during, and after your purchase.
Distributor Support
We offer promotions and sales incentives for distributors based on performance.

Technical Specifications

Feature	Description
Part Number	QM2SSP1X40XXXI
NAND	SLC, pSLC, MLC, TLC
Capacity	64GB, 128GB, 256GB, 512GB
Sequential Read (Max)	560MB/s
Sequential Write (Max)	480MB/s
Operating Temp.	-40°C to 85°C (Wide-Temp)
Storage Temp.	-55°C to 105°C
Humidity	5% to 95% RH (non-condensing)
Shock Resistance	Operating: 50G/11ms, Non-operating: 1500G/0.5ms
Vibration Resistance	Operating: 7.69 GRMS, Non-operating: 4.02 GRMS
Dimensions	42.00 x 22.1 x 3.5 mm
MTBF	2,000,000 hours
Warranty	3 years (based on TBW or warranty period)

Conclusion

The QOOTEC QM2SSP1X40XXXI M.2 SATA 2242 SSD provides a reliable solution for rugged environments and industrial applications. With wide-temperature support, high read/write speeds, and a compact M.2 (NGFF) form factor, this SSD ensures exceptional performance and durability in demanding conditions.

Contact us today to learn more or to place your order for the QM2SSP1X40XXXI M.2 SATA SSD.
